JMC Sampling Tubes
We offer a variety of soil sampling tubes. Each tube features a self-sharpening tip that cuts great looking cores and outlasts common replaceable tips eight to one.

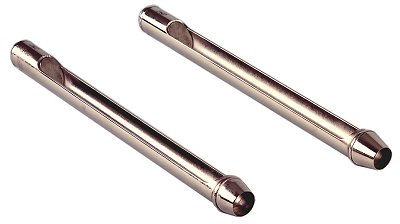

We have 3 kinds of tubes that take samples less than an inch in diameter:
- Wet Sampling Tubes.
- Work best in soft, moist soils. Core diameter is 0.688 inches.
- Dry Sampling Tubes.
- Work best in hard, dry soils. Core diameter is 0.75 inches.
(If you just want one tube, get one of these,) - Ag Consultant's Sampling Tube
- Same design as the Dry Tubes, but produces a core diameter of only 0.56 inches.
- All tubes feature hardened cutting tips.
- All metal parts nickel-plated to protect against rust and wear.
- Wet and Dry Tubes available in 12, 15, or 18 inch lengths.
- Ag Consultant's Tubes available in 12 and 18 inch lengths.
(Length measurements are overall length. Sample is 3 inches shorter.)
| Sampling Tubes for JMC Backsaver, Conventional, and "T" Handles | ||||
| Type | Size | Part Number |
Weight | Price |
| Wet | 12 inch | PN006 | 0.69 lbs. | $82.29 |
| Wet | 15 inch | PN008 | 0.75 lbs. | $84.89 |
| Wet | 18 inch | PN010 | 0.88 lbs. | $87.75 |
| Dry | 12 inch | PN007 | 0.69 lbs. | $82.29 |
| Dry | 15 inch | PN009 | 0.75 lbs. | $84.89 |
| Dry | 18 inch | PN011 | 0.88 lbs. | $87.75 |
| Ag Consultant's | 12 inch | PN029 | 0.50 lbs. | $92.96 |
| Ag Consultant's | 18 inch | PN030 | 0.60 lbs. | $105.64 |

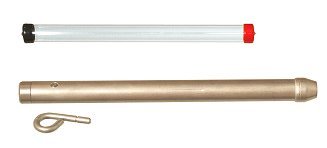

JMC Zero Contamination Tubes
Our JMC Zero Contamination Tube allows you to gather undisturbed soil samples encased in removeable PETG Copolyester liners.
- Tube isolates sample from surrounding soil while being lifted out of the ground.
- Vinyl caps seal sample inside liner during transit to your lab.
- Samples measure 0.8 inches in diameter.
- Tubes available in 12 or 18 inch lengths.
- Extra liners available at bulk discount prices.
- Stainless Steel Liners also available.
- Pull pin included for plow layer sampling.
- Straight pin included for sampling below plow layer.
| JMC Zero Contamination Sampling Tubes | |||
| Description | Part Number |
Weight | Price |
| JMC 12 inch Zero Contamination Sampling Tube (includes sampling tube, socket, pull pin, straight pin, 15 liners, 30 vinyl caps) | PN014 | 2.50 lbs. | $265.02 |
| JMC 18 inch Zero Contamination Sampling Tube (includes sampling tube, socket, pull pin, straight pin, 15 liners, 30 vinyl caps) |
PN057 | Weight: 3.25 lbs. | $343.92 |
Replacement Liners
| Replacement Liners & Caps for JMC Zero Contamination Tubes (Liners sold in sets of 15 with 15 black and 15 red vinyl caps) |
|||
| PN047 (12 inch length) | PN058 (18 inch length) | ||
| Quantity | Price/Set | Quantity | Price/Set |
| 1-15 Sets | $29.65 | 1-11 Sets | $42.55 |
| 16-31 Sets | $22.55 | 12-31 Sets | $31.90 |
| 32-63 Sets | $16.55 | 32-63 Sets | $22.55 |
| 64 or More Sets | $11.20 | 64 or More Sets | $15.15 |

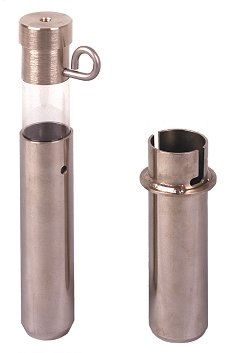

JMC 2 inch Concentric Sampling Tube
Our JMC Concentric Sampling Tube gathers undisturbed soil samples encased in removeable PETG Copolyester liners. It can also plant a 6 inch long metal casing that protects the sample site from surface debris after the sample is removed.
- Sampling Tube and Metal Casing both enter the ground as a unit.
- Sampling Tube releases from metal casing with a twist of the handgrip.
- Metal Casing remains in ground while sampling tube is retracted
- Deeper sampling can be performed through the center of the metal casing.
- Metal Casing retrieved by reinserting sampling tube and twisting to engage mounting.
- Samples measure 2.0 inches in diameter by 6 inches long.
- Sample encased in PETG Copolyester liners.
- Vinyl caps seal sample inside liner during transit to your lab.
- Extra liners available at bulk discount prices.
- Pull pin included for plow layer sampling.
- Straight pin included for sampling below plow layer.
| JMC Concentric Sampling Tube | |||
| Description | Part Number |
Weight | Price |
| JMC 2 x 6 inch Concentric Sampling Tube (includes sampling tube, socket, pull pin, straight pin, 15 liners, 30 vinyl caps) | PN400 | 6.50 lbs. | $702.74 |
Replacement Liners
| Replacement Liners & Caps for JMC 2 x 6 inch Concentric Sampling Tube (Liners sold in sets of 15 with 15 black and 15 red vinyl caps) |
|
| Quantity | Price/Set |
| 1-9 Sets | $39.60 |
| 10-25 Sets | $33.65 |
| 26-43 Sets | $27.70 |
| 44 or More Sets | $21.80 |
